Deburring Abrasive Nylon Tube Brushes with 6mm Shank

Certification
Good quality Knotted Wire Wheel Brush for sales
Good quality Knotted Wire Wheel Brush for sales
I'm Online Chat Now

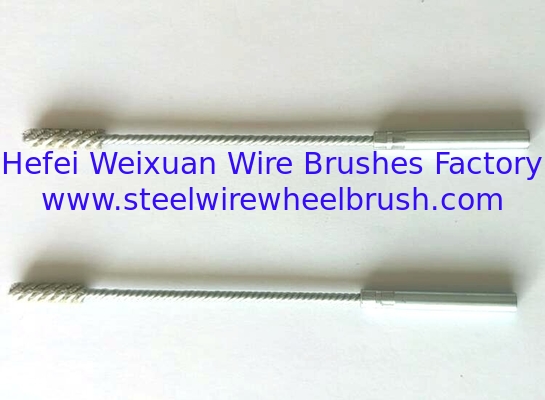

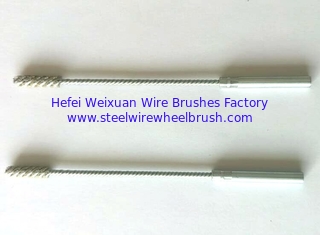

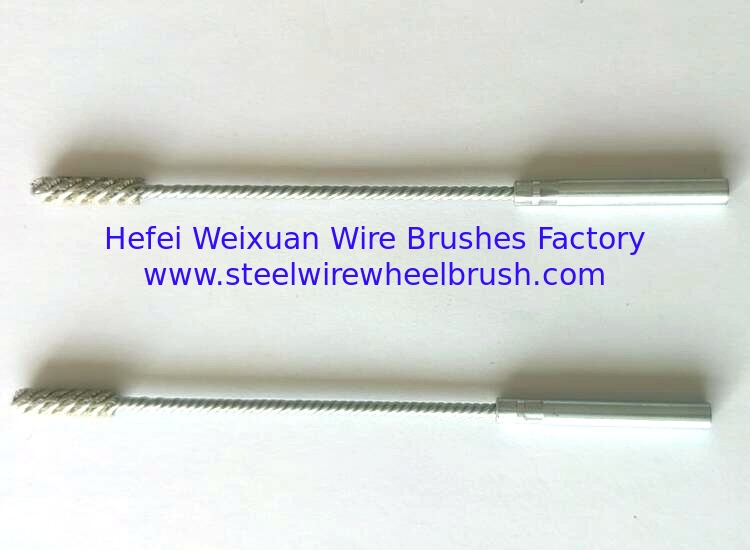

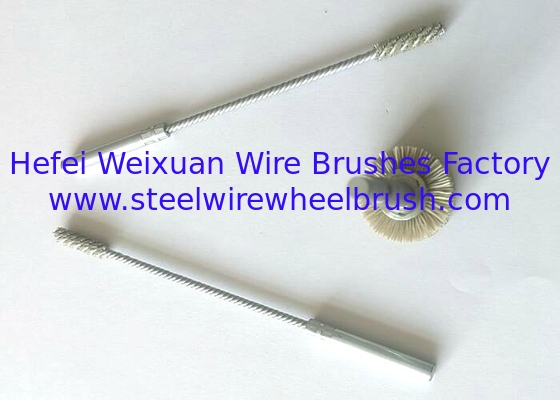

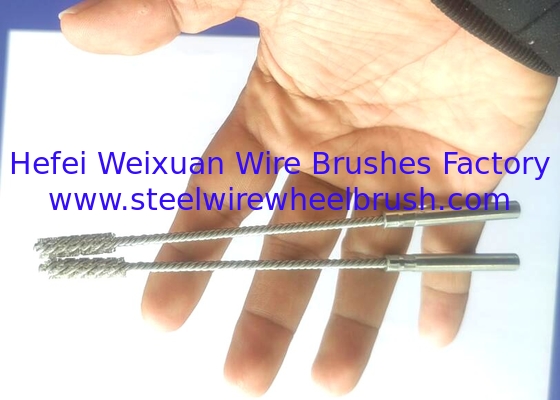

Deburring Abrasive Nylon Tube Brushes with 6mm Shank

China Deburring Abrasive Nylon Tube Brushes with 6mm Shank supplier
Deburring Abrasive Nylon Tube Brushes with 6mm Shank supplier Deburring Abrasive Nylon Tube Brushes with 6mm Shank supplier Deburring Abrasive Nylon Tube Brushes with 6mm Shank supplier Deburring Abrasive Nylon Tube Brushes with 6mm Shank supplier Deburring Abrasive Nylon Tube Brushes with 6mm Shank supplier Deburring Abrasive Nylon Tube Brushes with 6mm Shank supplier

Large Image :  Deburring Abrasive Nylon Tube Brushes with 6mm Shank

Product Details:

Place of Origin: China
Brand Name: L&W
Certification: ISO9001
Model Number: SGGDS-6-160

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 2000 piece / ctn, 2000 piece/ ctn
Delivery Time: 7 working days after received your payment
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 20000 piece / day
Detailed Product Description
Item: Deburring Abrasive Nylon Tube Brushes OD: 6MM
Bristle Length: 20mm Total Length: 160mm
Shank Dia.: 8mm Shaft Length: 45mm
Bristle Material: SIC Bristle Diameter: 0.3mm
Bristle Grits: 600

Deburring Abrasive Nylon Tube Brushes with 6mm Shank



Product Description

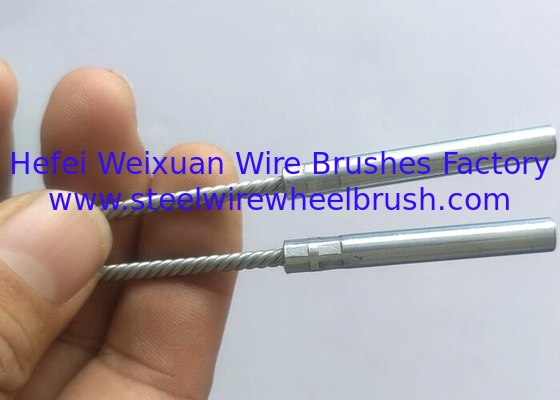

1. Abrasive nylon tube brushes on a 6 mm shank.

2. These twist in wire brushes are ideal for deburring and cleaning of any bore or hole.

3. Abrasive nylon tube brushes can be used by hand but as they come on a 6 mm shank

4. they can be used with a slow speed drill or you can use then on a lathe or CNC machine for a more automatic deburring process.

5. Designed to be used in a slow speed, high torque machine.

Deburring Abrasive Nylon Tube Brushes with 6mm Shank

Key Features:

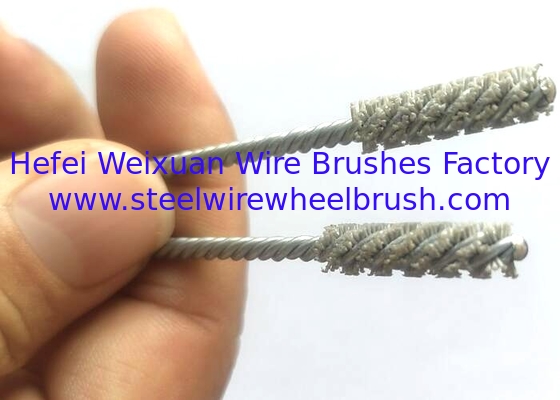

1. High density of silicon carbide filament for light or medium polishing and deburring action
2, Continuous brush tip can protect inner walls of holes or tubes from sharp scratching
3, Twisted brush stem can prevent brush filaments from being loose or folded
4, Brush end with steel shank is convenience for mounting on power tools or CNC machining center
5, Brush size and material can be custom made according to your requirement
6, Flexible packing and tag for selection
7, Support minimum order quantity and quick delivery time



Deburring Abrasive Nylon Tube Brushes with 6mm Shank

Deburring Abrasive Nylon Tube Brushes with 6mm Shank



Applications:



Abrasive Nylon Tube Brushes Uses:

Abrasive nylon tube brushes are used for:

  1. Deburring cross holes or edges in bores – These abrasive nylon tube brushes are excellent for removing burrs in any metal components. They work effectively in both Aluminium / softer metals and Steels / harder metals. very similar to twist in wire brushes, Flex Hones, bottle brushes. The twisted abrasive nylon is hard abrasive consequently it has good cut but in the finer grades it will leave a very smooth finish. The abrasive will not cause too much damage to the bore or start of the hole unlike other metal twist in wire or flex holes.
  2. Cleaning Bores and holes – These can also be used for cleaning and polishing bores. Select the finer grades for a softer application.

Abrasive nylon tube brushes Sizes and Grades available:

These are available in sizes from 5mm diameter to 24mm diameter. Please select the right diameter to fit the bore.

  • 120 grit is a medium grade good for steels and harder metals or heavy larger burrs
  • 240 grit is a fine grade suitable on most metals and leave a good finish.
  • 320 grit Extra fine grade. This will leave a good finish and good for finer burrs also using with lapping fluid or lubrication would leave a finer finish.

Abrasive nylon tube brushes how to use them:

  • by hand – We recommend using some lubrication because it might make this an easier job due to the brush being commonly used in a tight in the bore.
  • with a drill or tool – we recommend manually winding in first of all and then spinning with a drill or tool – slow speed, high torque would be best. This is the most popular method and creates good results we have found. Great for cross hole deburring.
  • In your CNC machine – for automatic deburring application where you want to remove burrs in your machining sequence. This is proving very popular as machining centres are becoming more technical with more tool options. These are mounted onto a 6mm shank, as a result they are easy to hold in CNC machines.

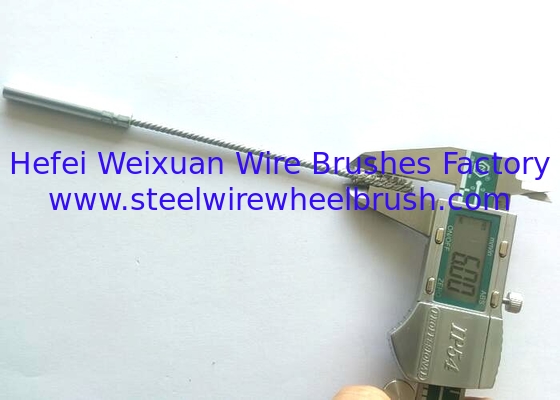

Product Details size

Deburring Abrasive Nylon Tube Brushes with 6mm Shank

  • Abrasive nylon tube brushes filled with silicon carbide wire are mainly used for polishing and deburring small holes, tubes, bores, pipes or cylinders in industrial environment.

  • Durable silicon carbide wire has light or medium polishing performance. Sturdy steel shank enables the brushes to assemble on the power tools or CNC machining center directly.

  • Brush filaments are available in 120 grit silicon carbide wire. Regular abrasive grits include 120, 180, 240 and 320. Other abrasive grits and brush size can also be custom made according to your requirement.

  •
  •

    Outer diameter



    6mm



    total length



    160cm



    bristle length



    20cm



    bristle material



    silicon carbide



    Grits



    600



  •

  • NOTE: if you don't know your need brush size .pls contact our customer service to consult. davis at chinawirebrush dot com
